The security and broadcast industry is not the only market for a Multiviewer. Monitoring multiple sources and video feeds occur in control rooms, studios, medical environments, and live events. With this in mind, a multiviewer consolidates numerous video sources (ex: game consoles, cable boxes, PCs, video cameras) to display onto a single monitor.
Ultriscape is the ultimate multiviewer platform for Studios, OB Vans, and Flypacks. As the world's first software defined multiviewer, customers realize significant cost, space, and power efficiencies with unparalleled flexibility and agility. When it comes to speed and flexibility, there is nothing on the market to compare with our SynView, a powerful, modular multiviewer that can handle both UHD and any IP video format.
The Geovision Surveillance DVR's are accessible remotely on a Windows PC using the DM MultiView client software. Users are able to view the live video as well as remotely playback recorded footage. In addition to those features, users are also able to control their PTZ cameras remotely from the DM MultiView client software. The MV-821-IP multiviewer is part of the MV-8 series multiviewer range. It is small and compact but with a high-density I/O and the only multiviewer to offer 48 inputs and 12 outputs in a 2 RU chassis. This makes the MV-821-IP ideal for on-the-road productions, flyaway packs, houses of worship and conference and events.
One large screen allows the user to monitor several source devices at once in a multiviewer environment. Additionally, some multiviewers can distribute by mirroring sources and layouts to multiple displays. Multiviewer displays are customizable allowing users to resize, scale, and place other information on each window for monitoring. On this article, we're going to look at a few different devices with multiview and multiformat capability, and other advanced features. If you're not in the mood to keep reading, our guys on BZB Express TV created a film to review and demo the products below.
Let's start with the Gefen EXT-UHD600A-MVSL-41 4×1 Multiviewer Seamless Switcher. This unit is the perfect solution for displaying content from four Hi-Def sources to one 4K Ultra HD display. Equally important, the unit allows each of the windows to be presented one at a time, or scaled and positioned on the screen individually. The EXT-UHD600A-MVSL-41 is HDCP compliant and can take input resolutions up to 1080p @60 while output up to [email protected] 4:4:4.
The Gefen EXT-UHD600A-MVSL-41 is capable of seamless switching, ensuring no frame loss during window and picture transitions. A standout feature about this unit is the ability to control the audio from any of the four HDMI sources via IR, RS-232, or IP, for playback through the HDMI output and analog audio output. Analog audio can be separated from the HDMI output and can be sent to a separate sound system, giving your presentation an extra boost.
The EXT-UHD600A-MVSL-41 Multiview Seamless Switcher is controllable via front panel, a handheld IR remote control, RS-232, and IP. An intuitive on-screen GUI (graphical user interface) clarifies system configuration. Users can take advantage of the additional programmable presets to store and recall custom-configured window arrangements.
Next is the Aneuvideo ANI-42HPIP 4×2 Multiviewer. This unit is a high-performance HDMI switch, with integrated scaling and multiview technology. The ideal environment for this product is control rooms, conference, and classrooms.
The ANI-42HPIP is an HDMI switch. What this means is that the user can display any of the connected HDMI source devices to a TV, and switch between them, going out to 2 mirrored HDMI outputs. Any of the 4 HDMI sources may be displayed full screen, individually or can be shown using a variety of multi-window modes including PiP, PAP, and quad view.
In regards to control, users can manage the input window, routing, position, and sizing can be via the front panel buttons. Also, WebGUI, RS-232, Telnet, and IR remote control options are available. Also, the ANI-42HPIP supports video resolutions up to [email protected] and audio up to 7.1 on both input and output. This unit is fully compatible with HDCP 2.2 standards.
Key Digital's KD-MLV4x2Pro is a 4×2 Multiviewer / Seamless Presentation Matrix Switcher. One of the things we noticed when unboxing the unit was a receiver. The receiver comes into play when utilizing the HDBaseT output port. The KD-MLV4x2Pro is a four input by 2 output unit, with one HDMI output for a local display and the second output is HDBaseT.
The unit's HDBaseT port separates this device from the rest. HDBaseT is the standard for sending Ultra HD video & audio, Ethernet, controls, USB, and power over a single, long-distance, category cable. This allows the user to connect to a display that is far from the rack, or in another room. Additionally, the receiver gets power from the KD-MLV4x2Pro, alleviating the need for a power supply. The unit works great for short or long-range applications.
The KD-MLV4x2Pro features seamless switching and independent matrix switching. Changing the source on the connected display is instant. Independent matrix switching allows the user to display any combination of the four inputs to the two outputs, regardless if it's the HDMI or VGA input. All four inputs have analog L/R inputs for external audio. Analog Balanced/unbalanced outputs for separating audio from HDMI through the PCM ports to another sound system is also available.
The KD-MLV4x2Pro is also versatile when in Quadrant Mode, allowing the user to display either 4K or 2K. Other customization features include image layering for stacking images with customizable priority settings. Also, window transparency and border allow you to view the content through each other with the power to choose window bezel width and coloring.
The KD-MLV4x2Pro is manageable via front panel buttons, IR, RS-232, TCP-IP, and Web Control. The unit is also compatible with Compass Control and popular 3rd-party control systems. Additionally, the unit is Key Digital App Ready, meaning it can be controlled over TCP/IP via Key Digital® App.
Last, the Avenview HDM2-SPLITPRO-T4K is a Quad Multiviewer scaler that supports [email protected] 4:4:4. The unit is a purposeful seamless HDMI switcher in both full screen and multi-window modes. Both input and output supports resolutions up to 4K at 60Hz as well as LPCM audio up to 7.1 channels. Animal crossing 2 release date.
As a multiviewer, the HDM2-SPLITPRO-T4K features the ability to crop any of the 4 HDMI inputs. This device can input any 4 HDMI digital sources and then combine, four video signals onto a single monitor for a variety of multi-window modes including quad view, overlay, and PiP. The unit can scale and position each individual channel size and choose a different position anywhere on display.
The HDM2-SPLITPRO-T4K is controllable via the front panel buttons, WebGUI, RS-232, Telnet, and IR remote. Management of each input/window routing, position, and sizing is simple for any user.
All the products above are ideal for control command centers, security, broadcast, live events, studios, and any space where you'll need to view multiple sources on one display. Deploying a monitor for each source or specification has become impractical. Employing a multiviewer solves this challenge, no matter how many sources or specifications are used. The flexibility of displaying multiple images in various resolutions, sizes, modes in an active display has many benefits. Visit our online store and explore your options in regards to your project. Catch the latest tech trends on our YouTube channel, BZB Express TV for insight on new audiovisual products, including demos and full reviews.

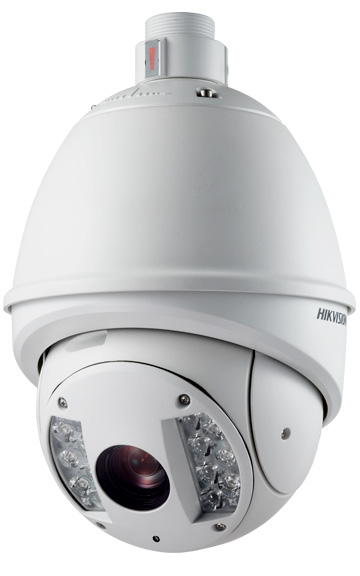

Network cameras (a.k.a IP cameras) are gaining popularity rapidly among consumers due to their ever-improving quality, features and declining prices. An HD network camera that normally cost over $200 in 2012 can be bought under $60 in 2016. Traditional typical users of network cameras are enterprises that have professionals for installation and maintenance. Many consumers choose the DIY approach to set up their cameras. This article is meant to help these users. It by no means can replace the help from professionals that is needed for a variety of reasons – complexity of a video surveillance system, user lacking required basic computer/network knowledge, demanded expedition…
There are literally thousands of models of network cameras in use. It is impossible to have a set of instructions fitting every model perfectly. We use a popular model (M1034-W) by the network camera inventor – Axis – in this article. The setup steps for the vast majority of other network cameras are either identical or very similar to the ones described here.
A word about ONVIF. Detailed explanation about ONVIF is beyond the scope of this article. An average user may only need to know that ONVIF is an international standard. An ONVIF conformant camera offers the maximum compatibility and interoperability with many software and hardware on the market. Generally speaking, ONVIF conformant cameras have more features and better quality than traditional non-ONVIF network cameras.
For this article, we assume the reader has very basic computer and network knowledge. Technically savvy users may find many parts are too rudimentary for them.
Network cameras are different from web cams and analog CCTV cameras. Web cams are connected to computers by USB cables. Analogy CCTV cameras are connected to servers by coax cables. Network cameras are connected to a network for access just like computers are connected to networks. Each network camera is actually a computer with a CPU and memory. I process images from CCD (Charge-coupled Device) or CMOS (Complementary Metal-oxide Semiconductor) sensors, send to clients (e.g. apps) and hosts a web server.
If this network camera does not have Wi-Fi, this may be the only step needed for the network configuration.
Some ONVIF cameras (e.g. some from Axis) have ONVIF services disabled by default. You will need to enable ONVIF as shown by the following figures for Axis 1031-W:
Axis cameras require a set of users for ONVIF services different from that for other types of access (e.g. web UI, proprietary API). It is critical to add users for ONVIF services because these cameras have no users for ONVIF services by default. The following figure shows how to add ONVIF users.
Most users want to access their network cameras outside their LANs (e.g. outside their homes). The next section will explain how to access the cameras via Wide Area Network (WAN) (e.g. via cellular connections). Unless you are experienced with the camera and its configuration, it is extremely important to make sure the camera works on your LAN first. This is because the WAN access will never work if the LAN access does not work. If it works on your LAN, it will be very easy to diagnose any issues with the WAN access.
Many apps have automated the setup process to a great degree, and it usually takes less than 1 minute to set up a camera before starting enjoying its video.
The following is for setting up a camera with apps Onvifer for Android, and IP CENTCOM for Windows 8.1/10 and Windows Phone.
The first step is choosing the type of device for the configuration as shown by the following figure:
ONVIF is the recommended one. Almost all new modern network cameras are ONVIF conformant. Please note most ONVIF cameras can also be used as generic RTSP stream or generic MJPEG. Older network cameras support RTSP, MJPEG, or both.
Once the type is selected, input the few required parameters (e.g. user name, password), the setup will usually be completed in seconds. The following figures show the setup screens for Onvifer, IP CENTCOM for Windows Phone and Windows 8.1/10 respectively:
Most users want to access their network cameras outside their LAN (e.g. home network). They may access via a cellular connection, a Wi-Fi hotspot, workplace network, etc. We have received far more questions about this topic than any others.
If you just want to know the quick steps to set up WAN access, please take a look at this post of ours with a few slides.
If you happen to use one of our apps, you can click button WAN Access after the video test on the setup screen is finished successfully as following figures show for Onvifer for Android, and IP CENTCOM for Windows and Windows Phone respectively:
You will get specific step-by-step instructions for the configured network camera as following:
We hope you will read the following to gain fundamental understanding of WAN access configuration regardless of whether you use our apps. It may look daunting to configure the WAN access, but it actually takes only a few minutes to do it once you know how. This section may be a bit long because we try to help you understand the principles behind the process. The specific steps highly depend on your camera and router.
Please note that most instructions here regarding configuring WAN access are NOT specific to our apps. They are applicable no matter which app (including browsers) you use to access your device remotely unless you use technologies such as P2P that maintain a constant connection between your camera and a server of a company that is usually unknown to users.
Let us have some basic understanding of how network cameras are accessed first. Every network camera has an IP address (e.g. 192.168.0.100) on a LAN. Non-technical users can treat this IP address as a street address, and their LAN (e.g. home network) as a city. Every computing device on your LAN can find the network camera by its IP address, just like everyone in your city can locate a home by its street address.
A network camera may use more than one port (the default port is HTTP default port 80). Each port offers a unique service. For example, one port for web UI, one port for RTSP. Non-technical people can treat ports as doors of a home. You get different services by entering different doors.
The IP address of a network camera is a private IP. The most common range is 192.168.0.0 - 192.168.255.255, followed by 10.0.0.0 - 10.255.255.255. They are least likely in the private IP range of 172.16.0.0 - 172.31.255.255. Private IPs are good for a LAN. It is like that a street address '101 5th Avenue' is good for locating a home in a city, but you cannot use it to locate a home in another city because every city may have '101 5th Avenue'. Every LAN may have a device using a private IP address such as 192.168.0.101.
Now, we can talk about how to access a network camera outside its LAN, or access a home outside its city.
Each LAN is behind a router (or gateway), and the router has an IP address and that IP address is public IP address, not a private IP address like that of a network camera though the IP address's format is the same. Since it is a public IP, the router can be accessed on the Internet anywhere in the world. How do we tell a router that we want to communicate with a specific network camera on the LAN behind it? The trick is port forwarding.
The only way to access a computing device on a network is through its IP address and ports. If there is only one network camera on a LAN, we can ask the router to forward everything to the camera, and everything will be the same as accessing the camera on the LAN except using the public IP address of the router. This would not work for multiple network cameras.
To deal with multiple cameras, we need to allocate different ports for different cameras. In other words, you will access every network camera with exactly the same IP address - the public IP address of the router, but with different ports. Using the city analogy, you will send/request packages to different homes of a city by using its different doors. For example, doors 8080 and 5556 of the city to doors 80 and 556 of address 101 5th Ave, doors 8082 and 5558 of the city to doors 80 and 556 of 102 5th Ave, and so on.
Most cameras allow modifying its used ports. Port 80 is usually used for HTTP and ONVIF, and port 554 is used for RTSP. Though it is not necessary theoretically, it is the best to change a camera's ports to match their external forwarding ports. For example, if port 8080 is forwarded to a camera's HTTP port, it would be the best to change the camera's HTTP port to 8080; if port 5554 is forwarded to a camera's RTSP port, it would be the best to change the camera's RTSP port to 5554. The following two figures show how to configure port forwarding for multiple cameras after modifying their ports to match the external ports.
Some cameras do not allow the modification of their ports, in this case you can forward different external ports to the fixed ports of cameras, but it is critical to tell apps to overwrite the RTSP ports informed by the cameras with their corresponding external RTSP forwarding ports (e.g. 5554, 5556…) in apps. This is because the cameras are not aware of port forwarding, so they always tell apps to use their ports. All of our apps support RTSP port overwriting. The following figure shows the port forwarding configuration of this scenario.
Each router has its own port forwarding UI. All of them have the same pattern - each port forwarding entry allows forwarding one port or a range of ports from the router (called external or public) to one port or a range of ports of a device.
The following is the port forwarding page of Netgear N300 Wireless Gigabit Router WNR3500Lv2, a popular low cost router. It represents the simplest port forwarding UI
The following represents a more complex port forwarding UI from Quantum Gateway (Fios-G1100). It shows that port 60163 is forwarded to port 80 of an Axis camera following the WAN access instructions of our app. Other ports can be forwarded in exactly the same way. Crfxfnm winrar tcgkfnyj.
All network cameras of major brands use one port for everything - Web UI, ONVIF services, RTSP and snapshot because they use only one transport protocol - HTTP. They support RTSP over HTTP. Some cameras, especially many made in Shenzhen, China require up to three ports - one port for web UI and maybe snapshot, one port ONVIF services, and one port for RTSP.
Finding the required ports sometimes is a bit tricky. Fortunately, all of our apps list the required ports as shown by the following screenshots:
Now you can use your router's public IP address to access your network camera. If you do not know your router's public IP, there are a few ways to find it:
Suppose your router's public IP is 109.173.137.12 and you have forwarded external port 8080 to the camera's ONVIF port 80, you can set up your camera with address 109.173.137.12:8080, and access it anywhere in the world.
The above method of WAN access assumes the public IP address of the router is static (i.e. does not change). This is not the case for most consumer homes. Public IP addresses are dynamically assigned to home routers except for those who obtain static public IP addresses by paying fees to their ISPs.
Fortunately, there is a way to deal with this. It is Dynamic DNS (DDNS). The details of DDNS are beyond the scope of this article. For the purpose of network camera WAN access, users only need to know that DDNS offers a static host name (e.g. mycamera.myddns.com) to replace a router's public IP address, so the address to a network camera remains constant.
When a DDNS host name is used, it is resolved to the dynamically assigned IP address of a router. It essentially tracks the change of the router's IP address. Many network camera manufacturers offer free DDNS service. One can also subscribe to paid or free DDNS service such as dyndns.org, freedns.afraid.org, dynu.com
There are three common ways for DDNS services to track routers' IP address changes:
All of them use the same mechanism - sending the router's dynamic IP address to a DDNS server upon its change or periodically. Each DDNS or service or router usually has detailed setup instructions. Some network camera manufacturers also provide detailed instructions for DDNS. Please see the last section 'The Axis Internet Dynamic DNS service' of this Axis document for an example.
Once the WAN configuration is successfully created, we suggest using it under all circumstances including being on the same LAN as the camera. This is because most routers nowadays support hairpinning that routes WAN configuration's traffic within the LAN (i.e. not going out) if the router detects the camera is on the same LAN. This is why we do not combine WAN configuration and LAN configuration in our apps. Automatic detecting whether the WAN or the LAN configuration should be used for streaming may take a few seconds under certain circumstances though it is instant in most cases.
